Patlite

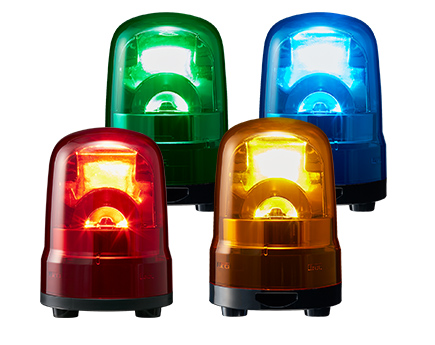

Rotating Beacons

Durable and Reliable
The SK is equipped with a brushless motor, which produces less heating than a conventional motor, and has a longer motor life.

Higher Visibility
This newly developed dual-reflector efficiently distributes LED light, creating bright, even light output.

The light-emitting surface is designed to provide maximum visibility and effective visual signals.

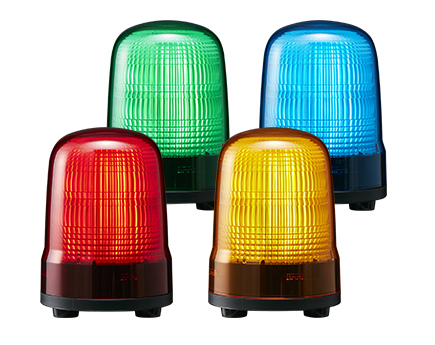

Flashing Beacons

Full Visibility
The newly developed Fresnel lens distributes ambient, uniform light from all surfaces of the globe, including the top.

Compared to competing products, the SL has a wider, light-emitting surface, with over 5 times the luminous intensity.

Easy Mounting :

• IP66 rating (KT type)
• Screw in the mounting bracket
• Connect wires to the push-in terminal block
• Mount the body onto the mounting bracket
• Lock into place

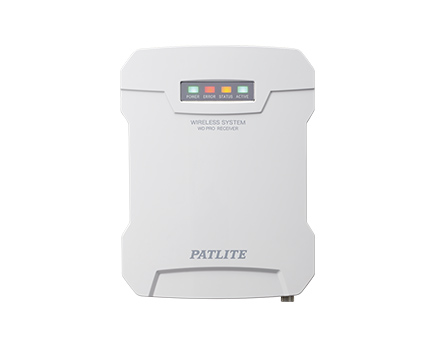

Wireless Data Acquisition System WD PRO Receiver

The WDR-LE-Z2-PRO (WD PRO Receiver) is a receiver that is part of PATLITE’s Wireless Data Acquisition System. This Wireless Data Acquisition System can wirelessly obtain light (and buzzer) statuses of connected signal towers in real-time, which can be output to a CSV file and analyzed to improve OEE and productivity. The WD PRO Receiver is an enhanced version of previous receivers and supports a wide variety of protocols, enabling easy communication with the host system and other devices at your worksite.

Features :

• PoE Capability
  　The WD PRO Receiver can access both power and data through a single Ethernet cable so that wiring space and costs can be minimized.
• Mounting Bracket
  　The main unit of the WD PRO Receiver clicks onto a surface-mounting bracket.
  　This allows for easy attachment and detachment, as well as versatility in mounting angles.
• Wireless Connection Diagnostics
  　The WD PRO Receiver is capable of tracking the quality of wireless connection between the receiver and its connected transmitters.
  　Up to 72 hours of diagnosis results can be collected, taken at 10-minute intervals.
  　There are 5 levels of diagnosis results, allowing users to identify when it is necessary to modify the installation environment.
  　This collected data can easily be viewed on your computer through the setup browser.
• Andon Display
  　Real-time light (and buzzer) statuses of all connected signal towers can be displayed onto your computer screen through the setup browser.
  　This can be done simultaneously with the CSV data collection.
• Collaboration Functions
  　In addition to the simple SOCKET protocol, the WD PRO Receiver has collaboration functions using Modbus/TCP and SQL database.
  　 　These protocols simplify communication and data collection between devices in your network.

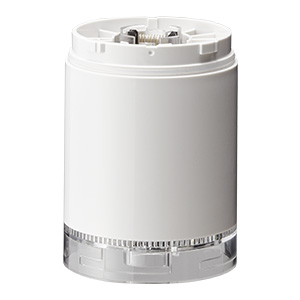

Wireless Data Acquisition System LR6 Transmitter

Transmitter attachment for the LR6 Signal Tower to enable wireless data transmission.

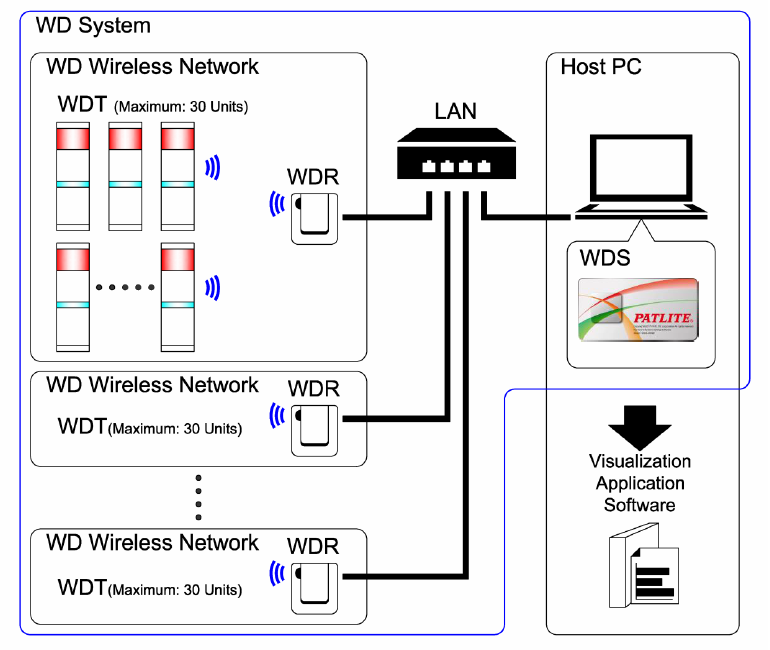

The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.

Different displays for various situations
(All tiers light up and blink with the same color / 9 colors available / Flowing display / Pulse)

Easy and safe to use
Simple control with general-purpose protocol
General-purpose protocols like HTTP and Modbus TCP/UDP are supported so implementation can be done with minimal development effort.
It also supports SOCKET communications. PNS commands, developed by PATLITE, can be used so existing product can be easily replaced.
