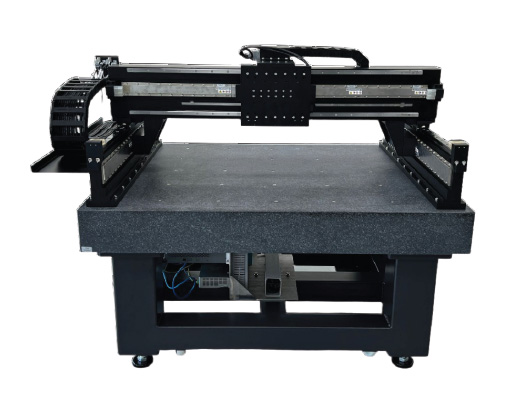

XYZ Gantry System
Based on the above structure, the product has the following characteristics：
//Specifications//
- Stroke: X:800mm; Y:600mm
- Velocity: 1.0m/sec
- Acceleration: 1.6G
- Straightness: ±5µm
- Flatness: ±7.5µm (Bottom axis); ±10µm (Top axis)
- Repeatability: ±0.5µm
//Product features//
- Powered by ironcore linear motors and ACS
- The Z axis integrates pneumatic pickers for horizontal motion, such as pick-and-place
- Firm structure supported by granite
//Applications//
- Automated optical inspection
- Vision detection
- Precision coating
- High-Speed Pick & Place
