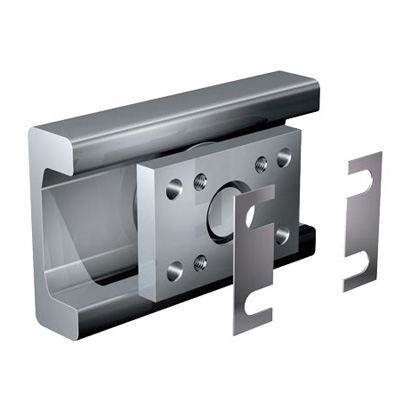

AP Flange plates rectangular

Advantages Flange plates rectangular for WINKEL-Bearings and Radial Bearings

WINKEL flange plates in combination with WINKEL-Bearings are suitable for screw joints between construction and guide profile.

  • All flange plates are welded with WINKEL-Bearings
  • Axial adjusting with washer type DS
  • All flange plates in corrosion protected version
  • material: S235 JR



Standard U-profiles NbV

Advantages Standard U-profiles NbV

  • All profiles from Standard 0 NbV on are made from high-quality steel S450 J2 mod., in sandblasted version.
  • Lmax = 12m
  • Suitable for WINKEL-Bearings system, we deliver all profiles in fixed lenghts, immediately from stock.
  • All profiles are availiable in fine straightened style on (± 0,3 mm per meter)
  • Higher load capacity with new NbV-series
