Patlite

Φ 60mm Ethernet Programmable LED Signal Tower Light with PoE

Discover the efficiency of our Φ60mm Programmable Multi-color LED Signal Tower Light, featuring advanced PoE support for streamlined connectivity and customization. Perfect for industrial use.

Features :

• Ethernet connection with PoE (Power over Ethernet) support, enabling single cable installation
• Supports Modbus TCP/IP and HTTP protocols to work seamlessly with your existing infrastructure
• Built-in web interface for quick and easy setup and configuration
• Includes 21 programmable LED colors and 11 selectable alarms for unambiguous indication
• Features a mirroring function for replicating the visual and audible statuses from a master LA6-POE on up to 8 remote slave LA6-POE
• Built-in terminal block as an alternative control method

IO-Link Signal Tower

Programmable Multi-color LED IO-Link Signal Tower

3 operating modes support various applications

[ Simple Mode ]
Visualization of equipment status
Effortlessly divide the lighting area into 1 to 5 tiers and freely set each tier's colors and flashing patterns.

[ Level Meter Mode ]
Visualization of tank level and temperature information

Preset lighting pattern can be activated depending on the tank level.
Easily display material replenishment timing and machine status changes.

[ Animation Mode ]
Visualizing Takt Time of manufacturing process
Visualize elapsed time by changing the preset colors from bottom to top or from top to bottom.

Easy connection greatly reduces man-hours
Effortlessly wire the LB6 with just one IO-Link cable without needing tools.
The LB6 automatically reverts back to the factory default settings when a replacement cable is connected.

Various indications are possible with our unique and easy setup tool

Φ100mm Signal Tower

The LKEH series is a combination of a signal tower and a powerful speaker with enhanced sound and capabilities. To use the LKEH-FV, you will need the software’s playlist editor. If you want to use the software to input text-to-speech data, please contact your PATLITE overseas office by email. The playlist editor will be sent to you.

The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.

• Visible from great distance with ultra bright LEDs and 100mm diameter lens.
• Safe for use at high vibration environment with robust 2G vibration resistant design.
• Easy to control with only one common wire for both LEDs and audible signals.
• CE, RoHS, IP53, (UL, c-UL pending).
• Field programmable with SD card. (Sold separately)
• Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
• Smooth LED lens surface.

PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in LKEH-FA, FC and FD types outside of Japan.
For additional information regarding this issue, please contact your local PATLITE sales representative.

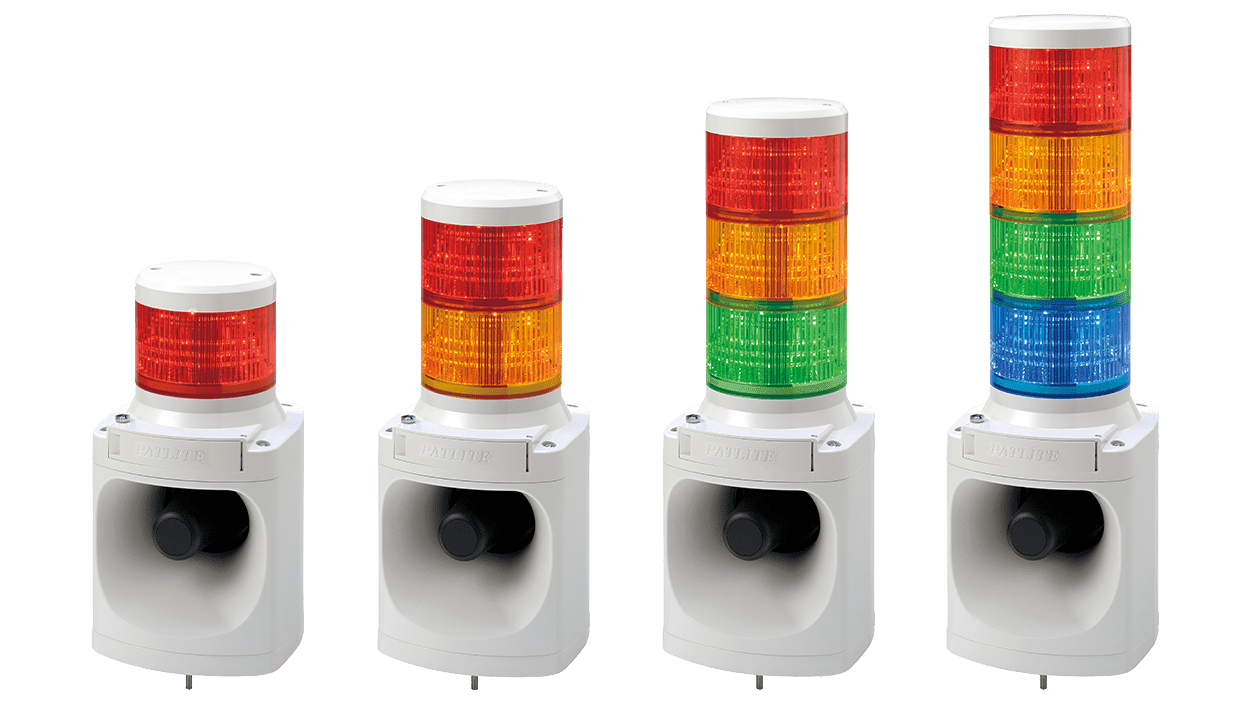

Φ100mm Voice Synthesizer with LED Signal Light

Discover the Φ100mm Voice Synthesizer with LED Signal Light from the LKEH series. This robust combination of a large horn and signal tower light offers enhanced sound and functionality. For optimal use with the LKEH-FV model, acquire the Playlist Editor 2 software by contacting your local PATLITE representative.

Feautures :

The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.
In order for LKEH-FV to use, you would need to get Playlist Editor of the software.
If you would like to use software to input voice synthesis data, please contact your local PATLITE overseas office by email.
The Playlist Editor will be sent to you.

• Visible from great distance with ultra bright LEDs and 100mm diameter lens.
• Safe for use at high vibration environment with robust 2G vibration resistant design.
• Easy to control with only one common wire for both LEDs and audible signals.
• CE, RoHS, IP53, (UL, c-UL pending).
• Field programmable with SD card. (Sold separately) (LKEH-FV)
  Message capacity is up to 63 seconds (64kbit/s) with 5 channels by a bit input and 31 channels by nary input.
• Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
• Smooth LED lens surface.

Warning Light

Vibrancy, Reliability, and Durability in a Compact Design
100,000-hr long-life LED for maintenance-free operation

High visibility
Can be seen from a distance of more than 300 meters. Can connect to up to 20 units tuning on simultaneously or in an alternating pattern (LPT-1M1 and LPT2-M1 can be combined).

Thin and compact
Sleek, space-saving design. Only 13.5mm thick

High reliability
90m/s2 vibration resistance and IP68 protection rating (IPX8: 1m underwater for 1 hour)
